Sanko Techno Amera Hanger ITA Type Steel with Drill ITA-1050R+D 1 Box

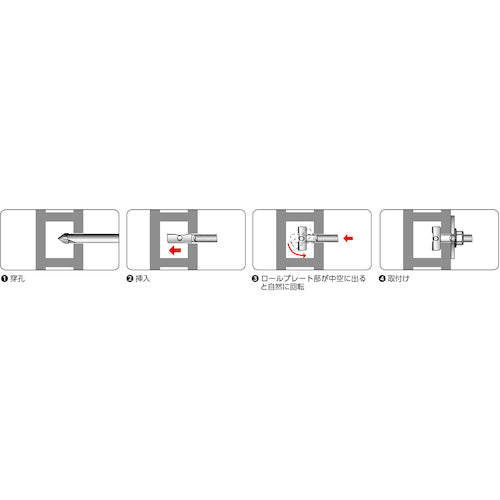

Catalog number: ITA-1050R+D Features: ●Double plate structure (= 2 sheets) provides strong holding power for clamping objects. ●The roll plate is shorter than the normal IT hanger type, so it can be installed easily even inside extruded cement boards. ●The roll plate is shorter for extruded cement boards, so it can be installed easily. Applications: ●For extruded cement boards. ●For attaching handrails and distribution boards, etc. ●For hollow walls●For installing handrails, brackets, distribution boards, bulletin boards, etc. on hollow walls. Specifications: ●Screw size: M10 ●Total length (mm): 50 ●Screw length (mm): 30 ●Pilot hole diameter (mm): 13.5 ●Drill diameter (mm): 13.5 ●Plate length (mm): 24 ●Maximum tensile load (kN): 3.5 ●Test base material: Extruded cement board ●Required hollow section (mm): 24 ●Clip thickness (mm): 11-24 ●Neck length (mm): 41 ●Boxed ●Includes 1 Amera drill Material/Finish: ●Steel ●Surface treatment: Trivalent chromate treatment Set contents/Accessories: ●50 Amera hangers, 1 Amera drill (AMD-13.5X120) ●Nut with seat Note: ●A hollow section longer than the plate length is required for installation. Please check the dimensions of the hollow section before use. ●When drilling holes, please use the Amera Drill, a special drill that will not damage the extruded cement board.
