Sanko Techno Amera Hanger ITA Type Stainless Steel with Drill ITA-1010VS+D 1 Box

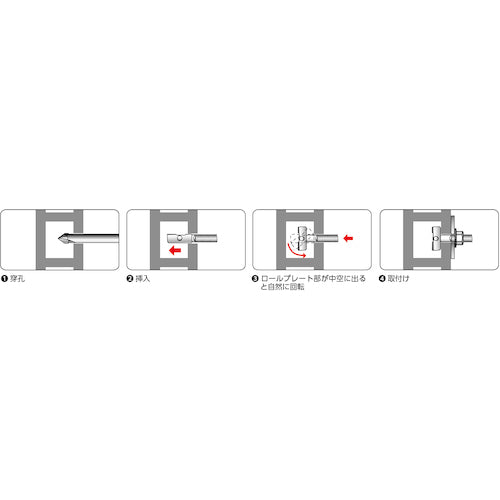

Catalogue number: ITA-1010VS+D Features: ●Double plate structure (= 2 sheets) provides strong holding power for clamping objects. ●The roll plate is shorter than the normal IT hanger type, so it can be installed easily even inside extruded cement boards. ●The roll plate is shorter for extruded cement boards, so it can be installed easily. ●Recommended by the ECP Association. Applications: ●For extruded cement boards. ●For attaching handrails and distribution boards, etc. ：4.26●Test base material: Extruded cement board●Required hollow section (mm): 30●Clamp thickness (mm): 17-73●Neck length (mm): 90●Boxed●Includes 1 Amera drill Material/Finish: ●Stainless steel (Main body: SUSXM7/SUS304, Plate: SUS304) Set contents/Accessories: ●30 Amera hangers, 1 Amera drill (AMD-15.0X120), Nut with seat Note: ●A hollow section at least as long as the plate is long is required for installation. Please check the dimensions of the hollow section before use. For drilling, please use the Amera Drill, a special drill that will not damage the extruded cement board.
