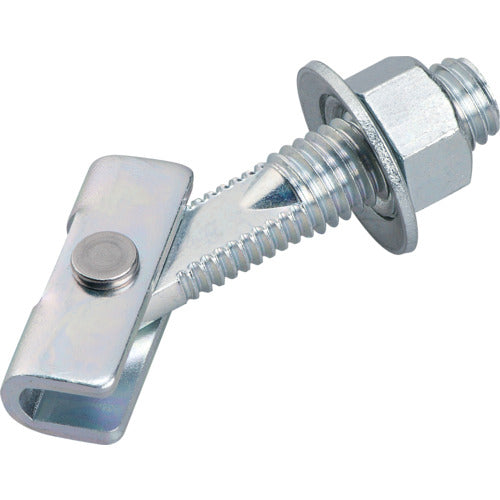

Sanko Techno Amera Hanger ITA Type Stainless Steel with Drill ITA-3070VS+D 1 Box

Catalogue number: ITA-3070VS+D Features: ●Double plate structure (= 2 sheets) provides strong holding power for clamping objects. ●The roll plate is shorter than the normal IT hanger type, so it can be installed easily even inside extruded cement boards. ●The roll plate is shorter for extruded cement boards, so it can be installed easily. ●Recommended by the ECP Association. Applications: ●For extruded cement boards. ●For attaching handrails and distribution boards, etc. ：60～65mm●For use on hollow walls●For installing handrails, brackets, distribution boards, bulletin boards, etc. on hollow walls Specifications: ●Screw size: W3/8●Total length (mm): 72●Screw length (mm): 43●Counterbore diameter (mm): 15.0●Drill diameter (mm): 15.0●Plate length (mm): 30●Maximum tensile load (kN): 4.26●Test material: Extruded cement board●Required hollow section (mm): 30●Clamp thickness (mm): 17-43●Neck length (mm): 60●Boxed●Includes 1 Amera drill Material/Finish: ●Stainless steel (Main body: SUSXM7/SUS304, Plate: SUS304) Set contents/Accessories: ●50 Amera hangers, 1 Amera drill (AMD-15.0X120) ●Nut with seat Note: ●A hollow section at least as long as the plate is required for installation. Please check the dimensions of the hollow section before use. For drilling, please use the Amera Drill, a special drill that will not damage the extruded cement board.
