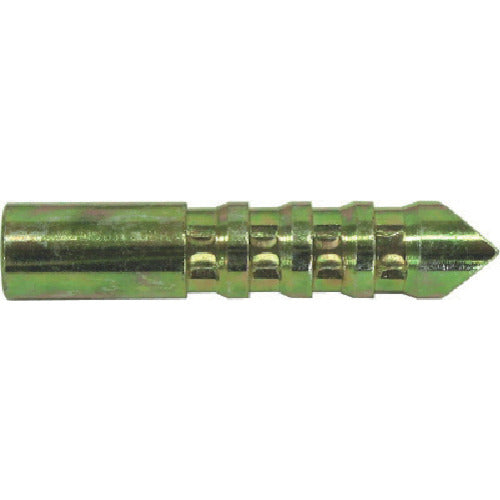

Sanko Techno Eagle Anchor EG Type Steel Metric Screw EG-10S 1 Piece

Catalog number: EG-10S Features: ● Threaded anchor exclusively for AR Chemical Setter EA-500/500S/500W and AX-350/400L. ● Maximizes the capabilities of adhesive resin and firmly fixes in concrete holes. ● Threaded type allows for unevenness adjustment and attachment/detachment of attachments. Applications: ● For concrete ● Bench installation, temporary rail installation, soundproof wall installation, etc. Specifications: ● Thread size: M10 ● Total length (mm): 55 ● Thread length (mm): 15 ● Maximum tensile load (kN): 19.2 ● Embedded depth (mm): 55 ● Outer diameter (mm): 14 ● Drilling depth (mm): 55 ● Drill diameter (mm): 16.0 ● Thread length (mm): 12 ● Boxed Material/Finish: ● Steel ● Trivalent chromate treatment Note: ● Maximum tensile load is the value when concrete strength Fc=24N/[[MM2]]. (Use EX-400, equivalent to SS400) * Clean the pilot hole with a brush and be sure to remove any chips. * Please note that the injection amount and number of shots will vary depending on the temperature.
