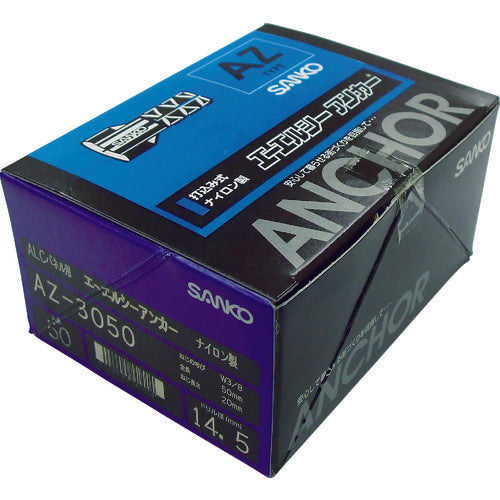

Sanko Techno ALC Anchor AZ Female Thread Type Inch Thread AZ-3050 50 Pieces

Catalogue number: AZ-3050 Features: ● Evenly adheres to ALC panels and has excellent tensile strength. ● Two wings prevent co-rotation. ● Easy installation, just hammer in. ● Double expansion with two sleeves that open for strong adhesion. ● Tightening installation does not damage the ALC panel. ● Two wings increase shear force and prevent co-rotation during installation. Applications: ● For ALC panels. ● For installing lighting fixtures, exhaust vents, grilles, etc. ●For ALC panels●For installing meter boxes, grilles, etc. Specifications: ●Screw designation: W3/8●Outer diameter (mm): 15●Total length (mm): 50●Drilling depth (mm): 60●Embedded depth (mm): 50●Drill diameter (mm): 14.5●Maximum tensile load (kN): 2.9●Threaded length (mm): 20●Recommended tightening torque (N・m): 5●Boxed●Threaded length: 20mm Material/Finish: ●Made of nylon Note: ●The maximum tensile load is based on the compressive strength of a 100mm thick ALC panel, Fc4N/mm[squared].
