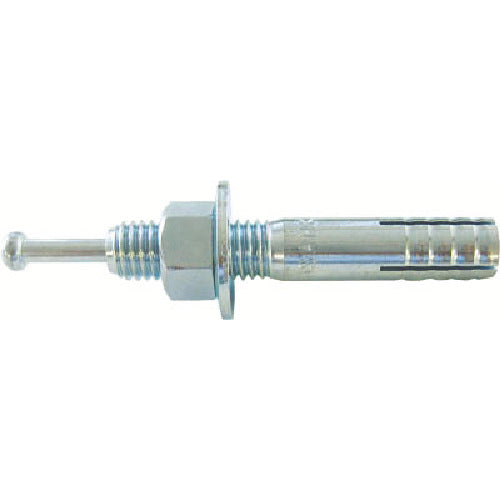

Sanko Techno All Anchor C Type Steel Inch Screw C-3060 50 Pieces

Catalog number: C-3060 Features: ●Easy installation by simply driving in the core rod. ●You can see at a glance when installation is complete, allowing you to manage the installation. ●Can be installed directly from above the object to be attached. ●The body diameter and thread nominal size are the same. Uses: ●For concrete●Installing handrails, fixing fence posts, etc. Specifications: ●Screw size: W3/8●Total length (mm): 60●Screw length (mm): 25●Maximum thickness of object (mm): 6●Drill hole diameter (mm): 10.0●Maximum tensile load (kN): 9.8●Embedding depth (mm): 40●Total length L (mm): 60●Drilling depth (mm): 50 or more●Drill diameter (mm): 10.0●Boxed Material/Finish: ●Steel●Trivalent chromate treatment●Surface treatment: Trivalent chromate treatment Set contents/Accessories: ●Nut with washer specifications●Nut with washer Note: ●The maximum tensile load is the value when the concrete strength is Fc=21N/[[MM2]]. ●Be sure to remove the chips from the pilot hole. ●Set the seat nut on the anchor, then insert it into the hole and hammer it in. ●Drive the core rod vertically and make sure it is firmly driven in until it touches the top of the main body. ●We recommend using the dedicated hand holder to ensure safe and reliable installation.
