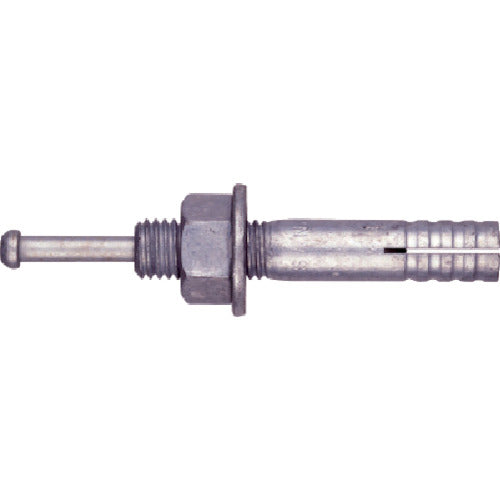

Sanko Techno All Anchor C-D Type Hot Dip Galvanized Metric Screw M8 C-850D 50 Pieces

Catalog number: C-850D Features: ●Easy installation by simply driving in the core rod. ●You can see when installation is complete at a glance, allowing you to manage the installation. ●Can be installed directly on top of the object to be installed. ●The body diameter and screw nominal are the same. Applications: ●For concrete. ●For installing handrails, fixing fence posts, etc. Specifications: ●Screw nominal: M8 ●Total length (mm): 50 ●Screw length (mm): 20 ●Maximum installation thickness (mm): 5 ●Pre-drilled hole diameter (mm): 8.5 ●Maximum tensile load (kN): 6.5 ●Embedding depth (mm): 35 ●Drill diameter (mm): 8.5 ●Drilling depth (mm): 43 or more ●Boxed Material/Finish: ●Steel ●Surface treatment: Hot-dip galvanized (body), SV (Silver Big) treatment (core rod) Set contents/Accessories: ●Nut/washer specifications ●Nut and washer Note: ●The maximum tensile load is the value when the concrete strength Fc=21N/[[MM2]]. ● Be sure to remove any cutting chips from the pilot hole. ● Place the nut and washer on the anchor, then insert it into the hole and hammer it in. ● Drive the core rod vertically, making sure to drive it in firmly until it touches the top of the main body. ● We recommend using the dedicated hand holder to ensure safe and reliable installation.
