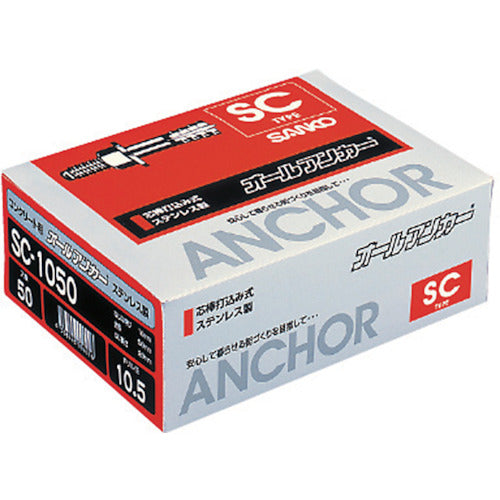

Sanko Techno All Anchor SC Type Stainless Steel Metric Screw SC-2023 10 Pieces

Catalog number: SC-2023 Features: ● Installation is as simple as driving in the core rod, so you can tell at a glance when installation is complete. ● The body and threaded part have the same diameter, so only a small hole needs to be drilled into the concrete. ● Can be installed directly from above the object to be attached. ● Nut-tightened type, so it can be removed. Applications: ● For construction work, civil engineering work, electrical work, mechanical equipment work, etc. ● For construction and equipment work where rust prevention is desired. Specifications: ●Screw designation: M20 ●Total length (mm): 230 ●Screw length (mm): 50 ●Maximum thickness of object to be attached (mm): 125 ●Pre-drilled hole diameter (mm): 21.5 ●Maximum tensile load (kN): 41.4 ●Embedded depth (mm): 80 ●Maximum shear load (kN): 77.3 ●Quantity (number per small box): 10 pieces ●Boxed Material/Finish: ●Stainless steel (SUS304 type) Note: ●The maximum tensile load is the value when the concrete strength Fc=21N/[[MM2]].
