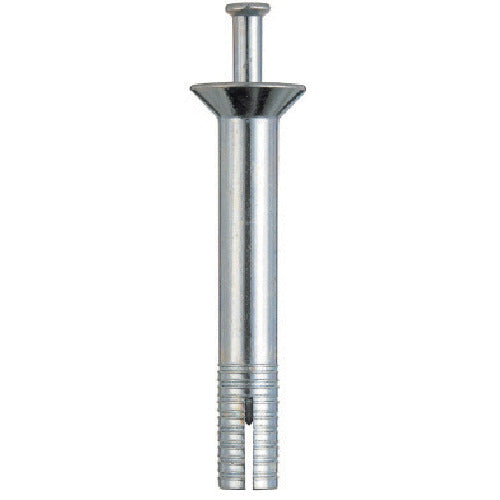

Sanko Techno All Anchor Y-Type Steel Y-1070 30 Pieces

Catalog number: Y-1070 Features: ●Screwless anchor ideal for installation in places where removal is not required. ●Can be installed from above equipment. ●Installation completion can be seen at a glance, allowing installation management. Uses: ●For concrete●Saddle fastening for wiring and piping, grille installation, display panel installation, etc. Specifications: ●Total length (mm): 70●Maximum thickness of mounting object (mm): 5.0~30●Drill hole diameter (mm): 10.5●Maximum tensile load (kN): 12.1●Embedding depth (mm): 40●Outer diameter (mm): 10●Head diameter dk (mm): 18●Maximum shear load (kN): 14.4●Head height (mm): 4.6●Thickness of mounting object (mm): 5~30●Drilling depth (mm): 50 or more●Drill diameter (mm): 10.5●Boxed Material/Finish: ●Steel●Trivalent chromate treatment Caution: ●The maximum tensile load is the value when the concrete strength Fc=21N/[[MM2]]. ●Be sure to remove the chips from the pilot hole. ●Drive the core rod vertically and make sure to drive it in firmly until it touches the top of the main body.
