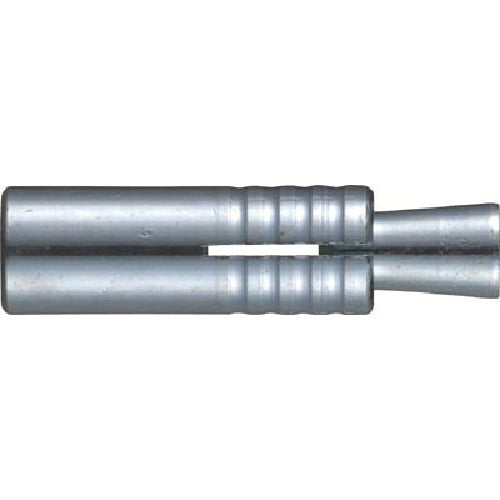

Sanko Techno Grip Anchor GA Short Type Steel Metric Screw GA-10MS 100 Pieces

Catalog number: GA-10MS Features: ● Applications can be expanded by selecting bolts according to specifications. ● Anchors do not get in the way even after equipment (facilities) are removed. Applications: ● For concrete ● Installation of pipe hanging hardware, light ceiling construction, installation of air conditioning ducts, cable rack hanging, installation of scaffolding, etc. Specifications: ● Screw size: M10 ● Outer diameter (mm): 14.0 ● Total length (mm): 30 ● Screw length (mm): 13 ● Drill diameter (mm): 14.5 ● Maximum tensile load (kN): 10.8 ● Embedded depth (mm): 30 ● Outer diameter D (mm): 14.0 ● Screw length (mm): 13 ● Total length L (mm): 30 ● Drilling depth (mm): 35 ● Boxed Material/Finish: ● Steel ● Trivalent chromate treatment ● Surface treatment: Trivalent chromate treatment Note: ● Maximum tensile load is the value when concrete strength Fc = 21N/[[MM2]]. ● Be sure to remove any cutting chips from the pilot hole. ● Check that the main unit has a cone, then set it in the pilot hole. ● To ensure safe and reliable installation, be sure to use the hand (machine) holder specified by our company. ● Use a hand (machine) holder that is compatible with the product size.
