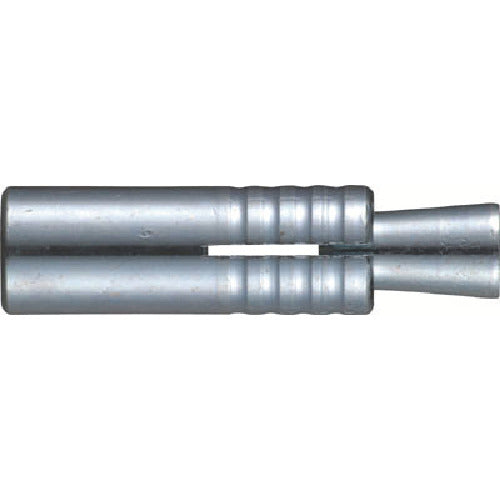

Sanko Techno Grip Anchor GA Short Type Steel Millimeter Screw GA-12MS 50 Pieces

Catalog number: GA-12MS Features: ● Applications can be expanded by selecting bolts according to specifications. ● Anchors do not get in the way even after equipment (facilities) are removed. Applications: ● For concrete ● Installation of pipe hanging hardware, light ceiling construction, installation of air conditioning ducts, cable rack hanging, installation of scaffolding, etc. Specifications: ● Screw size: M12 ● Outer diameter (mm): 17.3 ● Total length (mm): 40 ● Screw length (mm): 17 ● Drill diameter (mm): 18.0 ● Maximum tensile load (kN): 17.6 ● Embedded depth (mm): 40 ● Outer diameter D (mm): 17.3 ● Drilling depth (mm): 46 ● Thread length (mm): 17 ● Total length L (mm): 40 ● Boxed Material/Finish: ● Steel ● Trivalent chromate treatment ● Surface treatment: Trivalent chromate treatment Note: ● Maximum tensile load is the value when concrete strength Fc = 21N/[[MM2]]. ● Be sure to remove any cutting chips from the pilot hole. ● Check that the main unit has a cone, then set it in the pilot hole. ● To ensure safe and reliable installation, be sure to use the hand (machine) holder specified by our company. ● Use a hand (machine) holder that is compatible with the product size.
