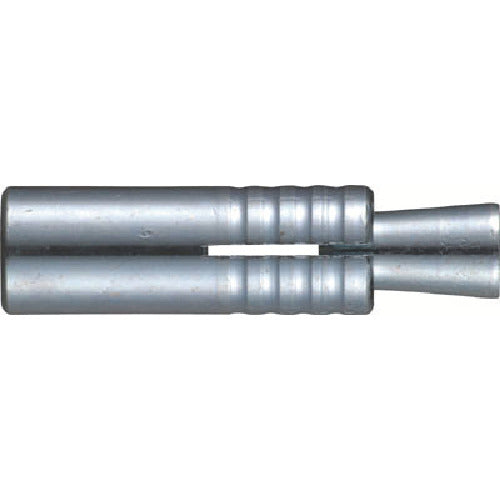

Sanko Techno Grip Anchor GA Type Steel Inch Screw GA-3030 100 Pieces

Catalog number: GA-3030 Features: ● Applications can be expanded by selecting the bolt according to the specifications. ● The anchor does not get in the way even after the equipment (facilities) is removed. Applications: ● For concrete ● Installation of pipe hanging hardware, light ceiling construction, installation of air conditioning ducts, cable rack hanging, installation of scaffolding, etc. Specifications: ● Screw size: W3/8 ● Outer diameter (mm): 12.0 ● Total length (mm): 30 ● Drill diameter (mm): 12.5 ● Maximum tensile load (kN): 9.8 ● Embedded depth (mm): 30 ● Outer diameter D (mm): 12.0 ● Drilling depth (mm): 35 ● Thread length (mm): 9 ● Total length L (mm): 30 ● Boxed Material/Finish: ● Steel ● Trivalent chromate treatment ● Surface treatment: Trivalent chromate treatment Caution: ● The maximum tensile load is the value when the concrete strength Fc = 21N/[[MM2]]. ● Be sure to remove the chips from the pilot hole. ●Check that the main unit has a cone attached, and then set it in the pilot hole. ●To ensure safe and reliable installation, be sure to use the hand (machine) holder specified by our company. ●Use a hand (machine) holder that is compatible with the product size.
