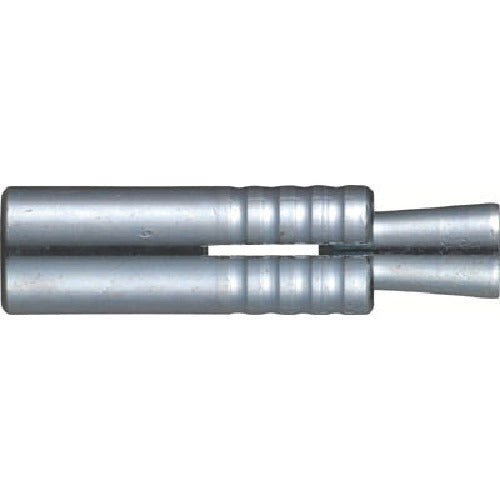

Sanko Techno Grip Anchor GA Type Steel Metric Screw GA-20M 15 Pieces

Catalog number: GA-20M Features: ● Applications can be expanded by selecting bolts according to specifications. ● Anchors do not get in the way even after equipment (facilities) are removed. Applications: ● For concrete ● Installation of pipe hanging hardware, light ceiling construction, installation of air conditioning ducts, cable rack hanging, installation of scaffolding, etc. Specifications: ● Screw size: M20 ● Outer diameter (mm): 25.4 ● Total length (mm): 80 ● Drill diameter (mm): 26.0 ● Maximum tensile load (kN): 52.9 ● Embedded depth (mm): 80 ● Outer diameter D (mm): 25.4 ● Thread length (mm): 30 ● Total length L (mm): 80 ● Drilling depth (mm): 90 ● Boxed Material/Finish: ● Steel ● Trivalent chromate treatment ● Surface treatment: Trivalent chromate treatment Caution: ● Maximum tensile load is the value when concrete strength Fc = 21N/[[MM2]]. ● Be sure to remove the chips from the pilot hole. ●Check that the main unit has a cone attached, and then set it in the pilot hole. ●To ensure safe and reliable installation, be sure to use the hand (machine) holder specified by our company. ●Use a hand (machine) holder that is compatible with the product size.
