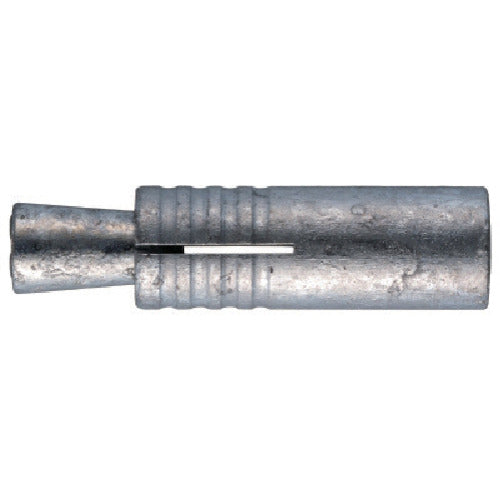

Sanko Techno Grip Anchor GA-D Type Hot Dip Galvanized M12 GA-12MD 50 Pieces

Catalog number: GA-12MD Features: ●The installation surface is flat, so the anchor will not get in the way even after the equipment (facilities) is removed. ●The range of uses can be expanded by selecting the bolt according to the specifications. Uses: ●For concrete ●Installation of pipe hanging hardware, light ceiling construction, installation of air conditioning ducts, cable rack hanging, installation of scaffolding, etc. Specifications: ●Screw size: M12 ●Outer diameter (mm): 17.3 ●Total length (mm): 50 ●Screw length (mm): 20 ●Drill diameter (mm): 18.0 ●Maximum tensile load (kN): 25.5 ●Embedding depth (mm): 50 ●Drilling depth (mm): 56 ●Boxed Material/Finish: ●Steel ●Hot-dip galvanized ●Surface treatment: Hot-dip galvanized (dip) Note: ●The maximum tensile load is the value when the concrete strength Fc=21N/[[MM2]]. ●A dedicated holder is required for installation. ●Be sure to remove the chips from the pilot hole. ●Check that the cone is attached to the main body and set it in the pilot hole.
