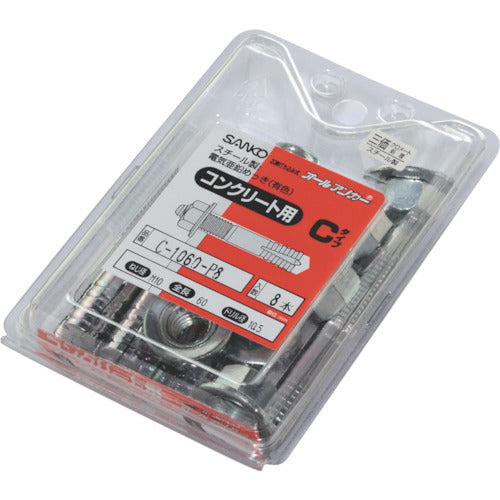

Sanko Techno Sandir Pack C Type Steel Metric Screw (6 Pieces) C-1270-P6 1 PK

Catalog number: C-1270-P6 Features: ●Easy installation by simply driving in the core rod. ●You can see when installation is complete at a glance, allowing you to manage the installation. ●Can be installed directly on top of the object to be installed. ●The body diameter and screw nominal are the same. Applications: ●For concrete ●Installation of handrails, fixing fence posts, etc. Specifications: ●Screw nominal: M12 ●Total length (mm): 70 ●Screw length (mm): 25 ●Maximum installation thickness (mm): 6 ●Pre-drilled hole diameter (mm): 12.7 ●Maximum tensile load (kN): 17.1 ●Embedding depth (mm): 50 ●Drill diameter (mm): 12.7 ●Drilling depth (mm): 62 or more ●Packed Material/Finish: ●Steel ●Trivalent chromate treatment ●Surface treatment: Trivalent chromate treatment Set contents/Accessories: ●Nut with washer ●Nut with washer Note: ●The maximum tensile load is the value when the concrete strength Fc=21N/[[MM2]]. ● Be sure to remove any cutting chips from the pilot hole. ● Place the seat nut on the anchor, then insert it into the hole and hammer it in. ● Drive the core rod vertically, making sure to drive it in firmly until it touches the top of the main body. ● We recommend using the dedicated hand holder to ensure safe and reliable installation.
