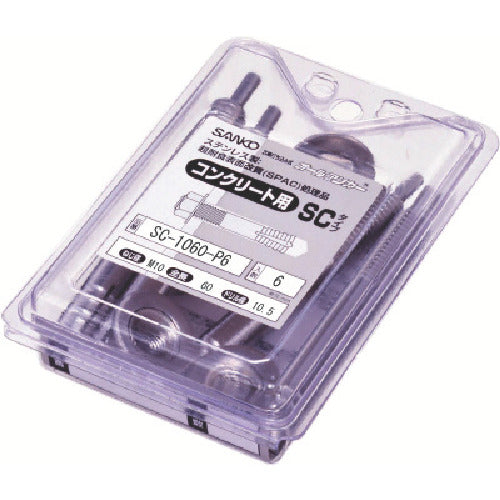

Sanko Techno Sandir Pack SC Type Stainless Steel Millimeter Screw (Pack of 6) SC-1060-P6 1 PK

Catalog number: SC-1060-P6 Features: ●Easy installation by simply driving in the core rod. ●You can see when installation is complete at a glance, allowing you to manage the installation. ●You can install directly on top of the object to be installed. ●The body and screw have the same diameter. Applications: ●For concrete ●Handrail installation, fence installation, bracket fixing, equipment stand installation, rack fixing, etc. Specifications: ●Screw size: M10 ●Total length (mm): 60 ●Screw length (mm): 25 ●Maximum object thickness (mm): 6 ●Drill hole diameter (mm): 10.5 ●Maximum tensile load (kN): 10.2 ●Embedding depth (mm): 40 ●Drill diameter (mm): 10.5 ●Drilling depth (mm): 40 or more ●Packed Material/Finish: ●Stainless steel (SUS304 series) Set contents/Accessories: ●Nut with washer ●Nut with washer Note: ●The maximum tensile load is the value when the concrete strength Fc=21N/[[MM2]]. ● Be sure to remove any cutting chips from the pilot hole. ● Place a nut with washer on the anchor, then insert it into the hole and hammer it in. ● Drive the core rod vertically, making sure to drive it in firmly until it touches the top of the main body. ● We recommend using the dedicated hand holder to ensure safe and reliable installation.
