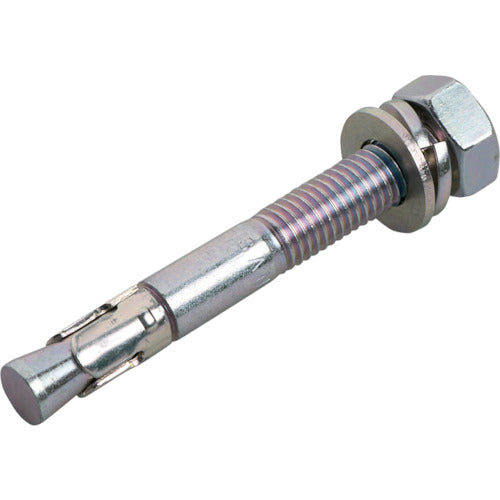

Sanko Techno Torcon Anchor TCW Type Steel Wedge Type TCW-1012 30 Pieces

Catalog number: TCW-1012 Features: * The "following expansion function" expands in response to tensile force, providing stable strength. * The body and thread diameter are the same, so installation is possible from above the object being attached. * Main dimensions based on JCAA certified products and SHASE-S standard products. * Line marks are included as a guide for installation management. * Even after installation, the overall length can be confirmed by checking the engraved head. Applications: * For installing pipe ducts, etc. ●For concrete●For medical equipment installation, communication frame installation, slag installation, plant facility construction, equipment installation, etc. Specifications: ●Screw designation: M10 ●Screw length (mm): 77 ●Total length (mm): 120 ●Maximum thickness of object to be attached (mm): 55 ●Drill diameter (mm): 10 ●Standard installation torque (N・m): 30 ●Maximum tensile load (kN): 16.4 ●Maximum shear load (kN): 20.4 ●Effective embedment depth (mm): 40 or more ●Embedded depth (mm): 49 or more ●Nut two-face width (mm): 17 ●Drilling depth (mm): 115 - thickness of object to be attached ●Maximum tensile load (kN): 16.4 ●Boxed Material/Finish: ●Steel ●Surface treatment: Trivalent chromate treatment Set contents/Accessories: ●Nut/Washer/Spring washer specifications Note: ●The maximum tensile load is the value when the concrete strength Fc=21N/[[MM2]].
