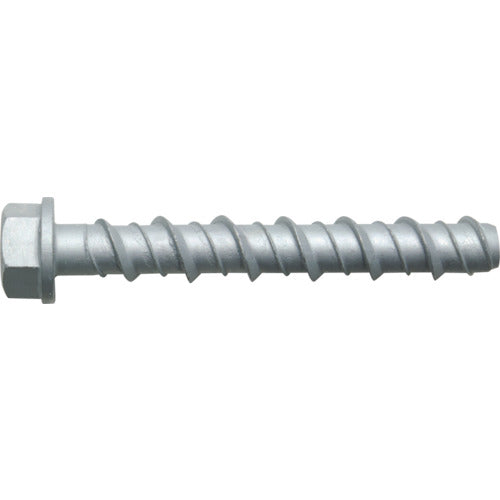

Sanko Techno Hard Edge Anchor HEA Type Steel HEA-860 50 Pieces

Catalogue number: HEA-860 Features: ●Can be removed after installation. ●Cuts threads into concrete for secure attachment. ●Can be installed from above the object being attached. ●Standard installation with an impact driver allows large amounts to be installed in a short time. ●Geomet treatment that does not contain hexavalent chromium. Applications: ●For concrete. ●For installing temporary structures/setting up chairs/installing outdoor units (air conditioners), etc. Specifications: ●Screw length (mm): 55 ●Maximum thickness of object to be attached (mm): 15 ●Drill diameter (mm): 8.0 ●Maximum tensile load (kN): 9.5 ●Outer diameter (mm): 10 ●Two-sided width dimension (mm): 13 ●Embedded depth (mm): 45 or more ●Counterbore diameter (mm): 8.0 ●Drilling depth (mm): 70-(thickness of object to be attached) ●Tightening torque (N・m): 30 ●Thickness of object to be attached (mm): 1 to 15 ●Drilling diameter (mm): 8.0 ●Maximum shear load (kN): 17.9 ●Standard tightening torque (N・m): 30 ●Neck length (mm): 60 ●Anchor outer diameter (mm): 10.0 ●Boxed Material/Finish: ●Steel ●Surface treatment: Geomet treatment Note: ●The maximum tensile load is the value when the concrete strength Fc=21N/[[MM2]]. ●When drilling pilot holes, be sure to use the anchor drill specified by our company. ●Be sure to remove any cutting chips from the pilot holes. ●When tightening, use an impact driver recommended by our company. ●Do not tighten excessively.
