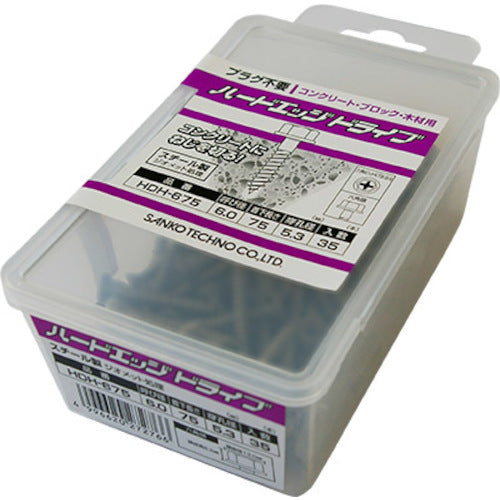

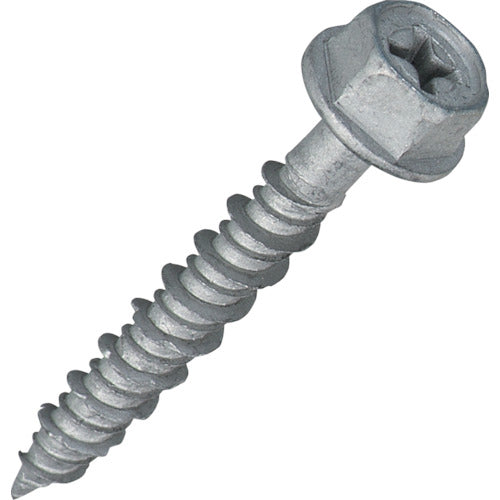

Sanko Techno Hard Edge Drive HDH Type Steel (18 pieces) HDH-6100 1 PK

Catalog number: HDH-6100 Features: *The head shape conforms to JIS standards, improving workability and fitting of parts. *No need for plugs, so drilling diameter can be small. *Steel is Geomet-treated, which does not contain hexavalent chromium, and stainless steel is Spack-treated. Uses: ● For concrete, blocks, and wood; ● Saddle fastening for wiring and piping, installation of switch boxes, installation of door frames, etc. Specifications: ● Nominal diameter d (mm): 6.0; Pilot hole diameter (mm): 5.3; Embedded depth (mm): 40; Maximum tensile load (kN): 5.3; Drilling depth (mm): 110-t; Length (mm): 100; Compatible driver: KTB-9.6 (two-sided width 9.6); Two-sided width dimensions (mm): 9.6; Head height (mm): 6.2; Drilling diameter (mm): 5.3; Bit used: KTB-9.6 (two-sided width 9.6); Neck length (mm): 100; Total length (mm): 100; Nominal diameter: 6; Head diameter (mm): 13.0; Packed Material/Finish: ● Steel; Geomet treatment; Surface treatment: Geomet treatment Note: ●The maximum tensile load is the value for concrete strength Fc=21N/mm2. ●Drill pilot holes to the specified drilling diameter. ●The drilling depth is length ±10mm-t (thickness of object to be attached). ●For sizes with nominal diameter 4, use a screwdriver (manual). ●Do not overtighten. Tightening more than necessary may cause the screw to break or the head to fly off.
