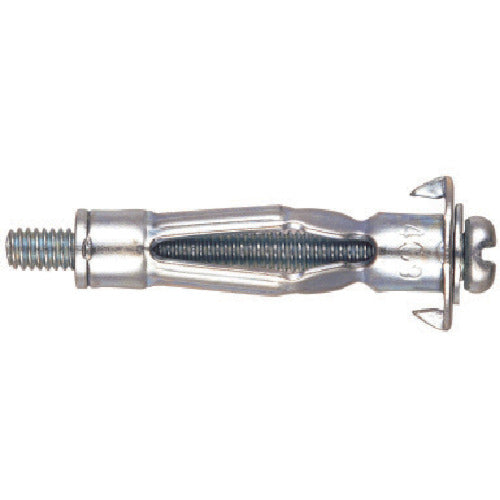

Sanko Techno Board Fastener Type B Steel (50 pieces) B-412P 1 PK

Catalog number: B-412P Features: ●Screws can be attached and detached freely. ●Simple construction for uniform finish. Applications: ●For hollow walls. ●For mounting lighting fixtures, audio equipment, curtain rails, etc. Specifications: ●Screw size: M4 ●Outer diameter (mm): 6.7 ●Total length (mm): 35 ●Screw length (mm): 42 ●Applicable board thickness (mm): 5-13 ●Drill hole diameter (mm): 9 ●Drill diameter (mm): 9.0 ●Tightening board thickness (mm): 5-13 ●Maximum tensile load (kN): 0.30 (plaster board thickness 9.5mm) ●Outer diameter D (mm): 6.8 ●Packed Material/Finish: ●Steel ●Trivalent chromate treatment ●Surface treatment: Trivalent chromate treatment Caution: ●When installing with a screwdriver, tighten the screw firmly, then tap it lightly with a hammer and insert it into the hole. ●When installing with a screwdriver, use a tool to prevent co-rotation. ●When using a screwdriver, tighten the screw sufficiently until it becomes difficult to turn. ●The drilling depth is the total length + 10mm-t (thickness of the object to be attached).
