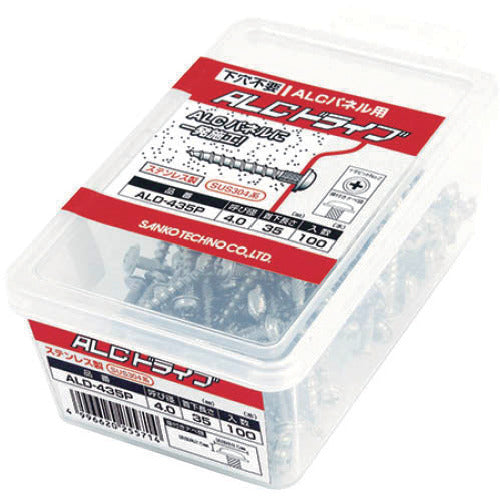

Sanko Techno ALC Drive ALD Type Stainless Steel (100 pcs) ALD-560P 1 PK

Catalog number: ALD-560P Features: ● Drilling, tapping, and installation in one process. ● The use of a special wide-pitch screw thread allows for smooth installation on ALC panels and provides stable holding power. Applications: ● For wiring and piping saddle fastening to ALC panels, interior base material installation, lighting fixture installation, guide plate installation, etc. Specifications: ● Embedded depth (mm): 50 ● Maximum tensile load (kN): 0.8 ● Nominal diameter d (mm): 5.0 ● Head diameter (mm): 9.6 ● Length (mm): 60 ● Compatible driver: Phillips No. 2 (865, 890 only No. 3) ● Neck length (mm): 60 ● Head height (mm): 2.9 ● Bit used: No. 2 ● Tightening torque (N・m): 1.5 to 2.2 ● Packed Material/Finish: ● Stainless steel (SUS304 series) Caution: ● When using a driver drill, be careful of the tightening torque. ● Drill holes at least 10 mm deeper than the embedded length.
