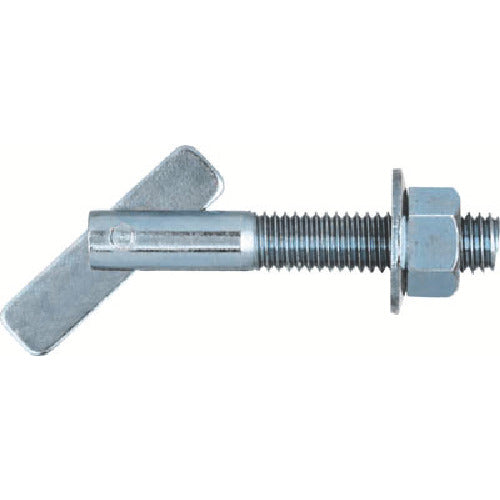

Sanko Techno IT Hanger IT Type Steel Metric Screw M10 IT1050 50 Pieces

Catalog number: IT1050 Features: ●The screw body and roll plate have the same diameter, so installation can be done with the mounting device installed. ●Can be installed on walls and floors. Applications: ●For hollow walls ●Installation of handrails, brackets, distribution boards, bulletin boards, etc. on hollow walls Specifications: ●Screw size: M10 ●Total length (mm): 50 ●Screw length (mm): 26 ●Pilot hole diameter (mm): 11 ●Drill diameter (mm): 11.0 ●Plate length (mm): 36 ●Tightening plate thickness (mm): 14-23 ●Required hollow section (mm): 38 ●Maximum tensile load (kN): 5.2 ●Neck length (mm): 40 ●Boxed Material/Finish: ●Steel ●Trivalent chromate treatment ●Surface treatment: Trivalent chromate treatment Set contents/Accessories: ●Nut with washer ●Nut with washer Caution: ●The hollow width required for installation is 38 mm or more. Please check the hollow section dimensions before use. *Select the size taking into consideration the thickness of the wall and the thickness of the object to be attached. *Be careful not to drop the IT hanger onto the back side of the wall. *The maximum tensile load is the plate strength.
