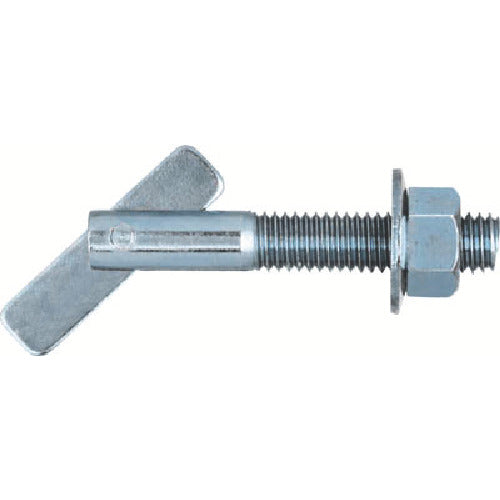

Sanko Techno IT Hanger IT Type Steel Metric Screw M8 IT845 50 Pieces

Catalog number: IT845 Features: ●The screw body and roll plate have the same diameter, so installation can be done with the mounting device installed. ●Can be installed on walls and floors. Applications: ●For hollow walls ●Installation of handrails, brackets, distribution boards, bulletin boards, etc. on hollow walls Specifications: ●Screw size: M8 ●Total length (mm): 45 ●Screw length (mm): 25 ●Pilot hole diameter (mm): 9.0 ●Drill diameter (mm): 9.0 ●Plate length (mm): 30 ●Tightening plate thickness (mm): 12-23 ●Required hollow section (mm): 32 ●Maximum tensile load (kN): 4.4 ●Neck length (mm): 37 ●Boxed Material/Finish: ●Steel ●Trivalent chromate treatment ●Surface treatment: Trivalent chromate treatment Set contents/Accessories: ●Nut with washer ●Nut with washer Caution: ●The hollow width required for installation is 32 mm or more. Please check the hollow section dimensions before use. *Select the size taking into consideration the thickness of the wall and the thickness of the object to be attached. *Be careful not to drop the IT hanger onto the back side of the wall. *The maximum tensile load is the plate strength.
