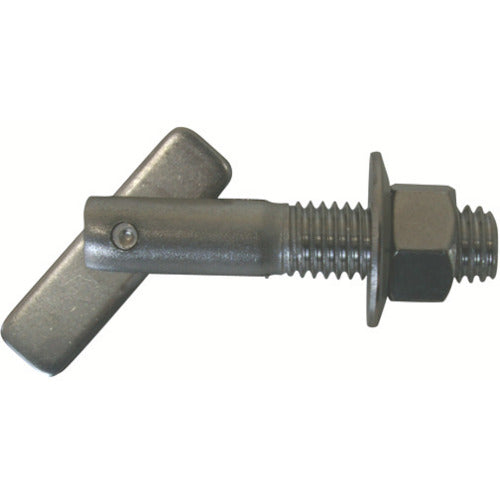

Sanko Techno IT Hanger IT Type Stainless Steel Metric Screw M10 IT1090S 50 Pieces

Catalog number: IT1090S Features: ●The screw body and roll plate have the same diameter, so installation can be done with the mounting device installed. ●Can be installed on walls and floors. Applications: ●For hollow walls ●Installation of handrails, brackets, distribution boards, bulletin boards, etc. on hollow walls Specifications: ●Screw size: M10 ●Total length (mm): 90 ●Screw length (mm): 66 ●Pilot hole diameter (mm): 11 ●Drill diameter (mm): 11.0 ●Plate length (mm): 36 ●Tightening plate thickness (mm): 14-63 ●Required hollow section (mm): 38 ●Maximum tensile load (kN): 5.2 ●Neck length (mm): 80 ●Boxed Material/Finish: ●Stainless steel (body: SUSXM7, plate: SUS304 series) Set contents/Accessories: ●Nut with washer specifications ●Nut with washer Note: ●The hollow width required for installation is 38 mm or more. Please check the dimensions of the hollow section before use. Select the size taking into consideration the wall thickness and the thickness of the object to be attached. Be careful not to drop the IT hanger onto the back side of the wall. The maximum tensile load is the plate strength.
