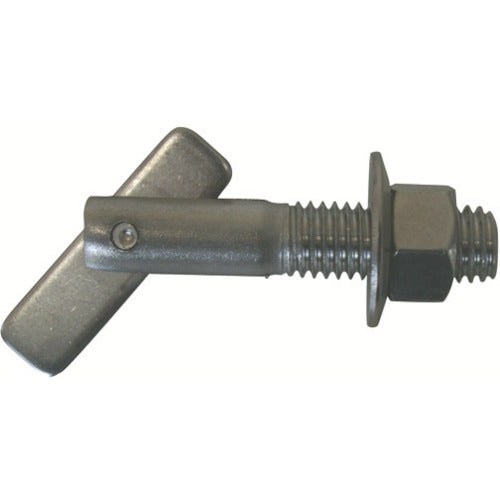

Sanko Techno IT Hanger IT Type Stainless Steel Metric Screw M8 IT890S 50 Pieces

Catalog number: IT890S Features: ●The screw body and roll plate have the same diameter, so installation can be done with the mounting device installed. ●Can be installed on walls and floors. Applications: ●For hollow walls ●Installation of handrails, brackets, distribution boards, bulletin boards, etc. on hollow walls Specifications: ●Screw size: M8 ●Total length (mm): 90 ●Screw length (mm): 60 ●Pilot hole diameter (mm): 9.0 ●Drill diameter (mm): 9.0 ●Plate length (mm): 30 ●Tightening plate thickness (mm): 22-68 ●Required hollow section (mm): 32 ●Maximum tensile load (kN): 4.4 ●Neck length (mm): 82 ●Boxed Material/Finish: ●Stainless steel (body: SUSXM7, plate: SUS304 series) Set contents/Accessories: ●Nut with washer ●Nut with washer Caution: ●The hollow width required for installation is 32 mm or more. Please check the hollow section dimensions before use. *Select the size taking into consideration the thickness of the wall and the thickness of the object to be attached. *Be careful not to drop the IT hanger onto the back side of the wall. *The maximum tensile load is the plate strength.
