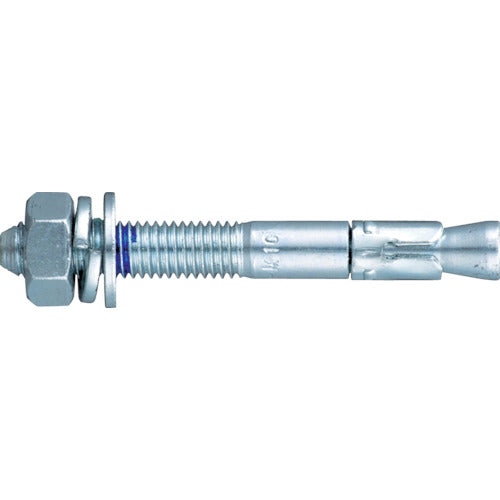

Sanko Torcon Anchor TCW Wedge Type TCW-860 50 Pieces

Catalog number: TCW-860 Features: * The "following expansion function" opens the expansion section in response to tensile force, providing stable strength. * The body and thread diameter are the same, so installation is possible from above the object being attached. * Main dimensions based on JCAA certified products and SHASE-S standard products. * Line marks are included as a guide for installation management. * Even after installation, the overall length can be confirmed by checking the engraved head. Applications: * For installing pipe ducts, etc. ●For concrete●For medical equipment installation, communications frame installation, slag installation, plant facility construction, equipment installation, etc. Specifications: ●Screw designation: M8 ●Screw length (mm): 23 ●Total length (mm): 60 ●Maximum thickness of object to be attached (mm): 5 ●Drill diameter (mm): 8 ●Standard installation torque (N・m): 15 ●Maximum tensile load (kN): 10.3 ●Maximum shear load (kN): 11.7 ●Effective embedment depth (mm): 35 or more ●Boxed Material/Finish: ●Steel ●Surface treatment: Trivalent chromate treatment Set contents/Accessories: ●Nut/Washer/Spring washer specifications Note: ●The maximum tensile load is the value when the concrete strength Fc=21N/[[MM2]].
