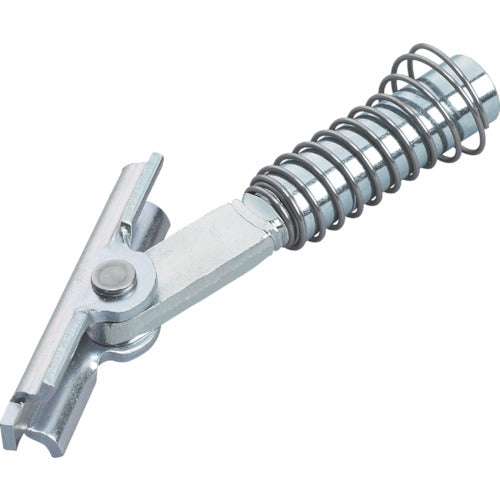

Sanko ALC IT Hanger ITL-W Type Steel Inch Screw ITL-3010W 25 Pieces

Catalog number: ITL-3010W Features: * Stable holding power is obtained by penetrating construction. * Tightening penetrating construction does not damage the ALC panel. * Tightening penetrating construction does not damage the ALC panel. * Spring effect makes construction easy. * Can be installed on walls and floors. Applications: * For ALC panels. ●For hollow walls●For installing distribution boards, gutters, signs, etc. Specifications: ●Screw designation: W3/8●Screw length (mm): 20●Counterbore diameter (mm): 17.0●Drill diameter (mm): 17.0●Plate length (mm): 55●Required hollow section (mm): 57●Maximum tensile load (kN): 5.7●Length (mm): 92●Quantity (number per small box): 25 pieces●Maximum tensile load kN (kgf): 6.4-6.9 (650-700)●Threaded type●Boxed Material/Finish: ●Steel●Surface treatment: Trivalent chromate treatment Note: ●The maximum tensile load is the value when the ALC panel has a compressive strength of Fc4N/m［［Ｍ２］］.
