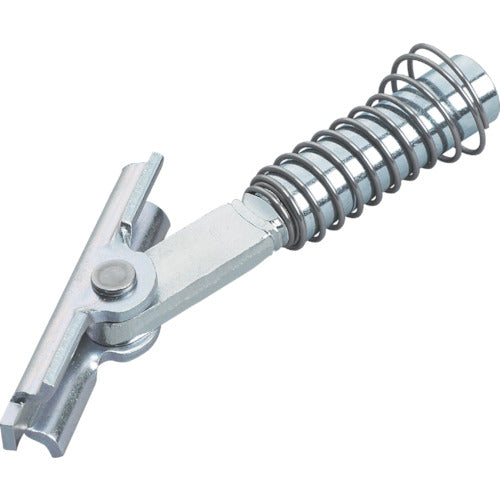

Sanko ALC IT Hanger ITL-W Type Steel Metric Screw ITL-1075W 25 Pieces

Catalog number: ITL-1075W Features: * Penetrating construction provides stable holding power. * Tightening penetrating construction does not damage ALC panels. * Tightening penetrating construction does not damage ALC panels. * Spring effect makes construction easy. * Can be installed on walls and floors. Applications: * For ALC panels. ●For hollow walls●For installing distribution boards, gutters, signs, etc. Specifications: ●Screw designation: M10 ●Screw length (mm): 20 ●Counterbore diameter (mm): 17.0 ●Drill diameter (mm): 17.0 ●Plate length (mm): 55 ●Required hollow section (mm): 57 ●Maximum tensile load (kN): 5.7 ●Length (mm): 73 ●Quantity (number per small box): 25 pieces ●Maximum tensile load kN (kgf): 6.4-6.9 (650-700) ●Threaded type ●Boxed Material/Finish: ●Steel ●Surface treatment: Trivalent chromate treatment Note: ●The maximum tensile load is the value when the ALC panel has a compressive strength of Fc4N/m［［Ｍ２］］.
