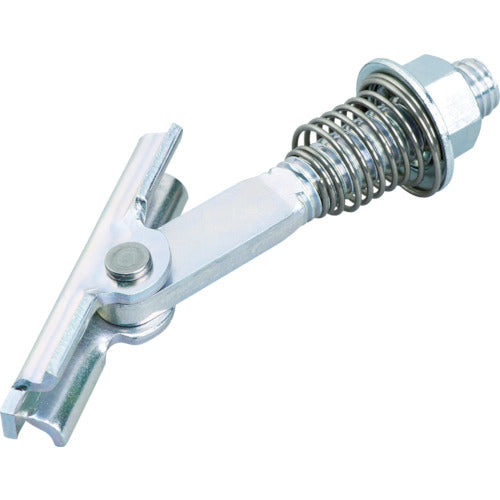

Sanko IT Hanger ITL-M Type Steel ITL-1016M 25 Pieces

Catalogue number: ITL-1016M Features: * Stable holding power is obtained by penetrating construction. * Tightening penetrating construction does not damage the ALC panel. * Tightening penetrating construction does not damage the ALC panel. * Spring effect makes it easy to install. * Can be installed on walls and floors. Applications: * For ALC panels. * For installing distribution boards, rain gutters, etc. Specifications: ●Screw designation: M10 ●Screw length (mm): 90 ●Counterbore diameter (mm): 17.0 ●Plate length (mm): 55 ●Fastening plate thickness (mm): 1-10 ●Required hollow section (mm): 57 ●Maximum attachment thickness (mm): 10 ●Maximum tensile load (kN): 5.7 ●Length (mm): 160 ●Threaded type ●Boxed Material/Finish: ●Steel ●Surface treatment: Trivalent chromate treatment Set contents/Accessories: ●Nut with seat Note: ●The maximum tensile load is the value when the ALC panel compressive strength is Fc4N/m［［Ｍ２］］.
