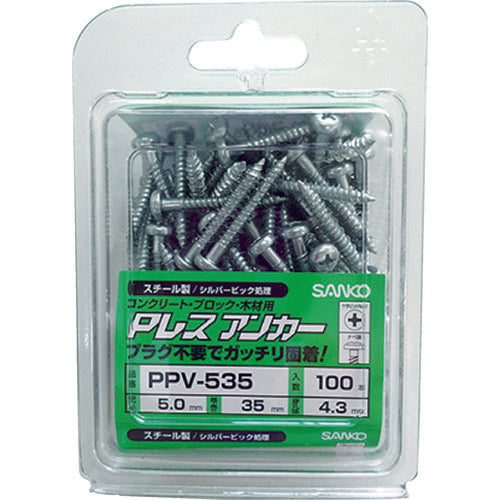

Sanko P-less anchor, steel (100 pieces) PFV-5X35P100 1 PK

Catalog number: PFV-5X35P100 Features: *No plug required, small pilot hole is sufficient. *Firmly fixed with both high, sharp threads and low threads. *No plug required, small drilling diameter is sufficient. *Firmly fixed to the mating material with both high and low threads. Applications: *For concrete, blocks, and wood. *For saddle fastening of wiring and piping. ●For concrete, blocks, and wood●For saddle fastening of wiring and piping, installation of signboards, installation of interior base materials, installation of lighting fixtures, etc. Specifications: ●Nominal diameter d (mm): 5●Pre-drilled hole diameter (mm): 4.3●Embedding depth (mm): 30●Maximum tensile load (kN): 3.3●Drilling depth (mm): 45-t●Length (mm): 35●Compatible screwdriver: Phillips No. 2 Material/Finish: ●Steel●Surface treatment: SV (Silver Big) treatment Note: ●The maximum tensile load is the value when the concrete strength is Fc 21N/mm [squared]. ●The drilling depth is the value of the total length + 10mm-t (thickness of the object to be attached).
