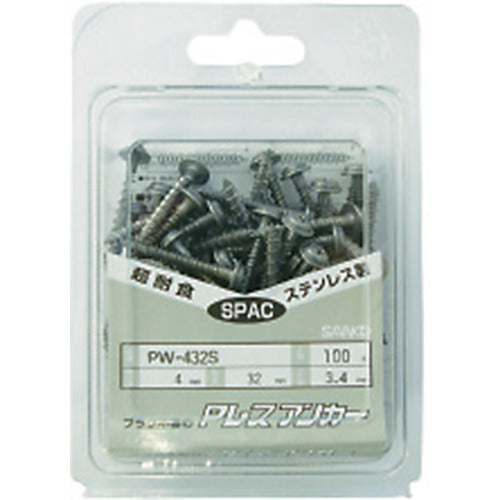

Sanko P-less anchor, stainless steel pan head with seat (100 pieces) PW-4X32SP100 1 PK

Catalog number: PW-4X32SP100 Features: *No plug required, so pilot holes can be small. *Both high and low thread mechanisms ensure firm adhesion to mating materials. *No plug required, so drilling holes can be small. *Both high and low thread mechanisms ensure firm adhesion to mating materials. Applications: *For concrete, blocks, and wood. *Saddle fasteners for wiring and piping, switch boxes, etc. ●For concrete, blocks, and wood●For saddle fastening of wiring and piping, installation of signboards, installation of interior base materials, installation of lighting fixtures, etc. Specifications: ●Nominal diameter d (mm): 4 ●Pre-drilled hole diameter (mm): 3.4 ●Embedding depth (mm): 30 ●Maximum tensile load (kN): 2.8 ●Drilling depth (mm): 42-t ●Length (mm): 32 ●Compatible screwdriver: Phillips No. 2 Material/Finish: ●Stainless steel (SUS410) Note: ●Maximum tensile load is the value when the concrete strength is Fc 21N/mm [squared]. ●Drilling depth is the value of total length + 10mm-t (thickness of attachment).
