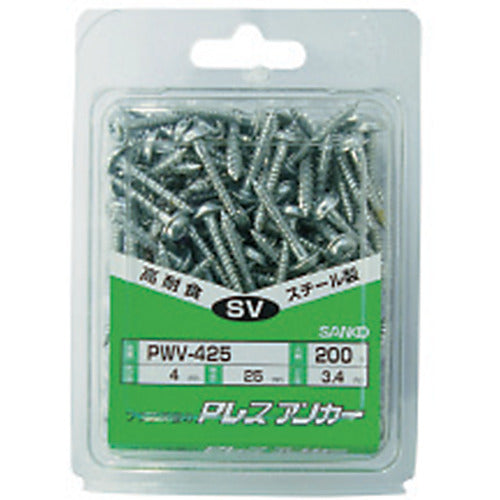

Sanko P-lessunker, steel (200 pieces) PWV-4X25P200 1 PK

Catalog number: PWV-4X25P200 Features: *No plug required, so pilot holes can be small. *Both high and low thread mechanisms ensure firm adhesion to mating materials. *No plug required, so drilling holes can be small. *Both high and low thread mechanisms ensure firm adhesion to mating materials. Applications: *For concrete, blocks, and wood. *Saddle fasteners for wiring and piping, switch boxes, etc. ●For concrete, blocks, and wood●For saddle fastening of wiring and piping, installation of signboards, installation of interior base materials, installation of lighting fixtures, etc. Specifications: ●Nominal diameter d (mm): 4 ●Pre-drilled hole diameter (mm): 3.4 ●Embedding depth (mm): 22 ●Maximum tensile load (kN): 1.7 ●Drilling depth (mm): 35-t ●Length (mm): 25 ●Compatible screwdriver: Phillips No. 2 Material/Finish: ●Steel ●Surface treatment: SV (Silver Big) treatment Note: ●Maximum tensile load is the value when the concrete strength is Fc 21N/mm [squared]. ●Drilling depth is the value of length + 10mm-t (thickness of the object to be attached).
