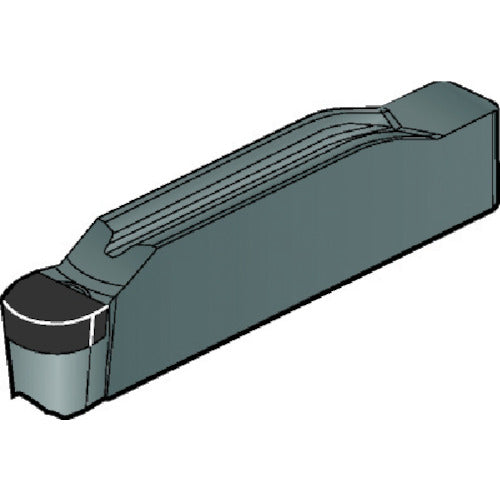

Sandvik CoroCut 1/2 Copy Machining Insert (620) 7015 N123F1-0300-RE 5 pieces

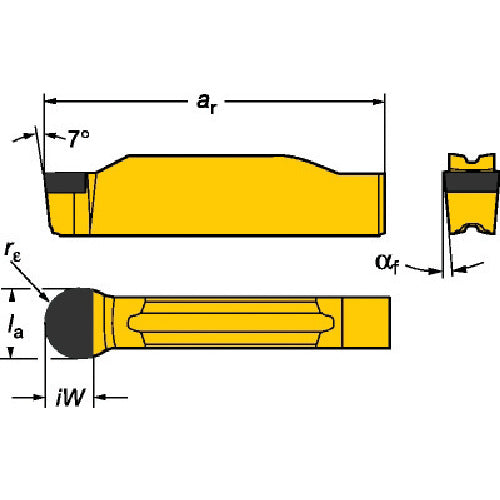

Catalog number: N123F1-0300-RE Features: ● A material with a low CBN content that exhibits high machining performance. ● High clamp rigidity. Applications: ● For copying. ● For machining heat-resistant alloys and high-hardness steel. Specifications: ● Suitable workpiece: SH ● Insert shape: 1 corner specification ● Insert clearance angle (°): 7 ● Coating: UNCOAT ● Machining form: Low feed ● Breaker: RE ● Seat size: F ● Insert size: F ● re: 1.5 ● la: 3 ● iW: 2.7 ● Maximum cutting depth: ar of the bit used ● Width (mm): 3.0 ● Corner R (mm): 1.5 ● CBN insert
