Sandvik CoroCut 1/2 shank tool for parting and grooving (480) LF123G13-2020B-067B 1 piece

Sandvik CoroCut 1/2 shank tool for parting and grooving (480) LF123G13-2020B-067B 1 piece

JAN： 　
Cutting Tools Grooving and parting tools Indexable Tools Sandvik Holder 3 Turning and milling tools
¥27,714
¥27,714
Sale Sold out
Shipping calculated at checkout.

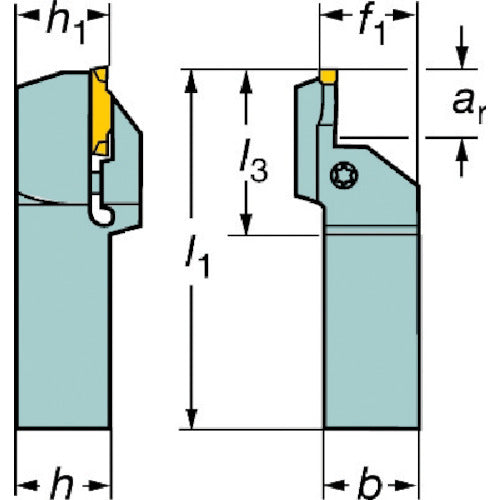

Catalog number: LF123G13-2020B-067B Features: ● Shank holder for parting and grooving with high clamping rigidity. ● The unique rail lock seat and V-shaped seat firmly absorb lateral cutting forces, providing high stability. (Patented) Applications: ● For parting and grooving. Specifications: ● Handed: Left ● Gauge tip: N123G2-0300- TF ● Tip size: G ● Minimum first cutting diameter: 67 ● Maximum first cutting diameter: 100 ● Tip tightening torque: 2.6 ● Maximum cutting depth: 13 ● f1: 21 ● l1: 125 ● l3: 33 ● b: 20 ● h: 20 ● h1: 20
