サンドビック（株）コロマントカンパニー
Sandvik CoroCut 1/2 shank tool for parting and grooving (480) LG123K20-2525B-168BM 1 piece
Sandvik CoroCut 1/2 shank tool for parting and grooving (480) LG123K20-2525B-168BM 1 piece
Regular price
¥30,473
Regular price
Sale price
¥30,473
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

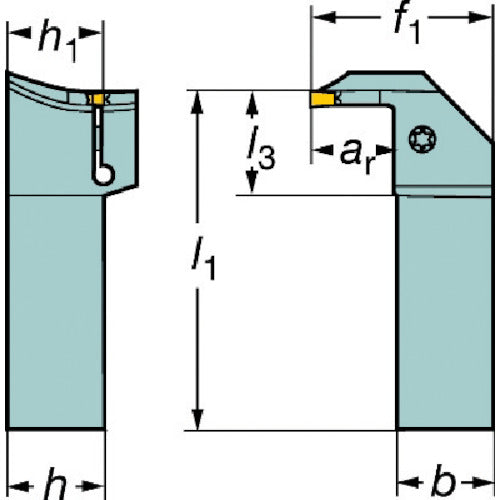

Catalog number: LG123K20-2525B-168BM Features: ● Shank holder for end face grooving with high clamping rigidity. ● The unique rail lock seat and V-shaped seat firmly absorb lateral cutting forces, providing high stability. (Patented) Applications: ● For end face grooving. Specifications: ● Gauge tip: N123K2-0600- TF ● Minimum first cutting diameter: 168 ● Maximum first cutting diameter: 400 ● Tip tightening torque: 5.3 ● Maximum cutting depth: 20 ● f1: 47 ● l1: 150 ● l3: 30.65 ● b: 25 ● h: 25 ● h1: 25 ● Sandvik CoroCut 1/2 Shank bit for parting and grooving
