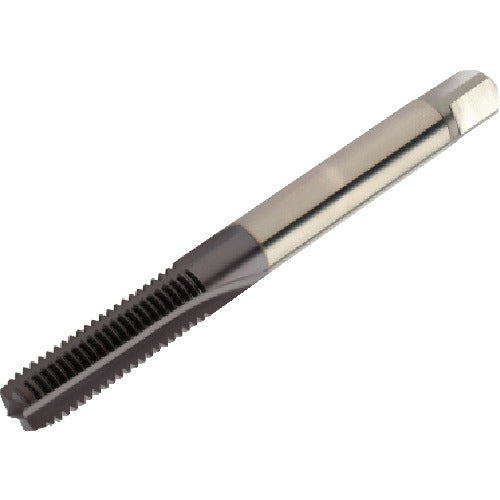

Sandvik CoroTap 100 Straight Tap (780) D115 T100-KM100JA-M3 1 piece

Catalogue number: T100-KM100JA-M3 Features: ●CoroTap 100 is a range of straight flute taps optimized for short chipping in cast iron (ISO K), non-ferrous materials (ISO N) and hard materials (ISO H). Applications: ●For through and blind hole machining in short chipping materials. ●For cast iron. Specifications: ●Accuracy: 6HX ●Nominal size: M3 ●Pitch (mm): 0.5 ●Thread length (mm): 9 ●Total length (mm): 46 ●Shank diameter (mm): 4 ●Shank square section (mm): 3.2 ●Drill hole diameter (mm): 2.5 ●Machining thread: Metric thread ●Surface treatment: TiCN ●Number of grooves: 3 ●High speed steel
