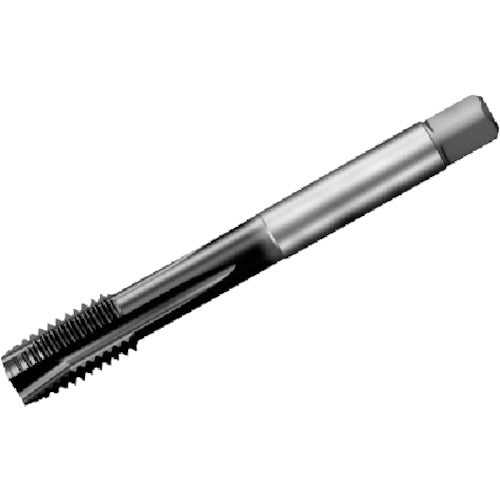

Sandvik CoroTap 200 Point Tap (780) P1PM T200-PM101JA-M12 1 piece

Catalogue number: T200-PM101JA-M12 Features: ●CoroTap 200 is a point tap designed to drive chips forward in through-hole machining. ●The range includes a wide range of taps for various materials and taps optimized for specific materials and applications. ●Improved flute shape for improved performance. ●Features uniform geometry and new surface treatment. Applications: ●For through holes. ●For steel. Specifications: ●Accuracy: 6H ●Nominal size: M12 ●Pitch (mm): 1.75 ●Thread length (mm): 23 ●Total length (mm): 82 ●Shank diameter (mm): 8.5 ●Shank square section (mm): 6.5 ●Drill hole diameter (mm): 10.3 ●Number of engagement threads: 4.5 ●Thread: Metric ●Surface treatment: TiAlN ●Number of grooves: 4 Material/Finish: ●Cobalt powder high speed steel
