Sandvik Coromant 107 Positive Insert Boring Bit (210) A10K-STFCR 09-R 1 piece
Sandvik Coromant 107 Positive Insert Boring Bit (210) A10K-STFCR 09-R 1 piece
Regular price
¥20,441
Regular price
Sale price
¥20,441
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

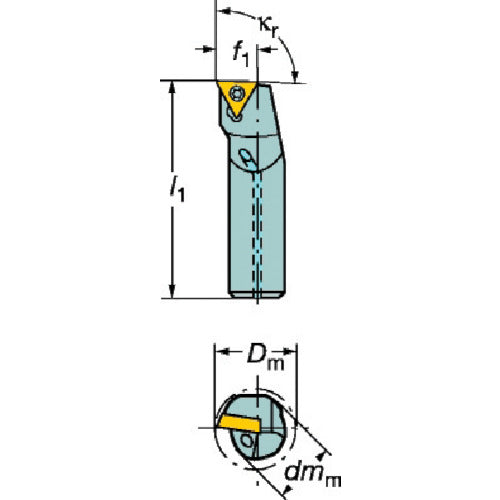

Catalogue number: A10K-STFCR 09-R Features: ● Internal boring bar with low cutting resistance. ● Internal coolant allows for extended insert life and good chip control. ● High tool rigidity allows for stable machining even with long overhangs. ● Easy fix sleeve allows for quick and accurate adjustment of core height. Applications: ● For internal turning. Specifications: ● Gauge insert: TCMT 09 02 04 ● Cutting edge angle: 91 ● f1: 7 ● l1: 125 ● DMM: 10 ● Dm_min: 13 ● Maximum overhang: 4 x dmm ● Insert clamping torque: 0.9 ● Sandvik CoroTurn 107 boring bar for positive inserts
