Sandvik Coromant 107 Anti-Vibration Cartridge Boring Bar for Turning (430) F12Q-STFCL 09-R 1 piece

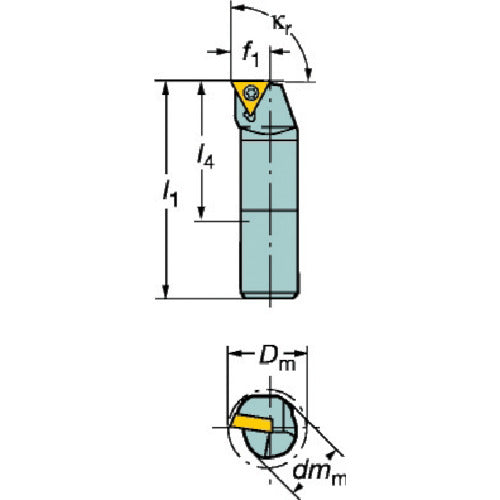

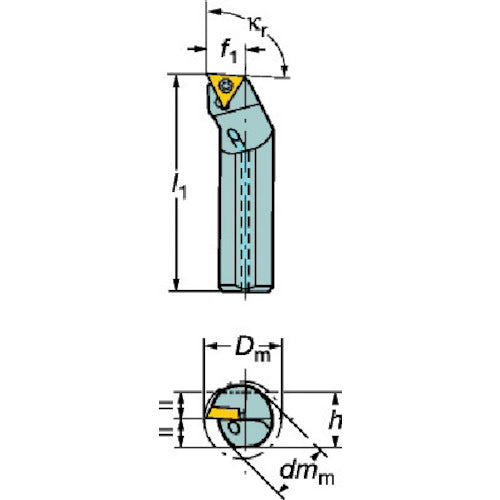

Catalogue number: F12Q-STFCL 09-R Features: ● Carbide reinforced boring bar for deep hole boring with built-in vibration damping device for absorbing cutting vibration caused by tool. ● The dynamic rigidity of the vibration-proof bit is greatly increased by the cutting vibration damping capacity of the vibration-proof device inside the bar. The protrusion length limit of normal steel boring bars is 4 times the tool diameter, but the protrusion length can be increased to about 10 times. Applications: ● For internal turning with longer protrusions. ● For suppressing vibration. Specifications: ● Gauge tip: TCMT 09 02 04 ● Cutting angle: 91 ● f1: 9 ● l1: 180 ● DMM: 12 ● Dm_min: 16 ● l4: 72 ● Maximum protrusion: 10 x dmm ● Tip tightening torque: 0.9 ● Carbide anti-vibration boring bar for Sandvik CoroTurn 107 positive tip Material/Finish: ● Carbide
