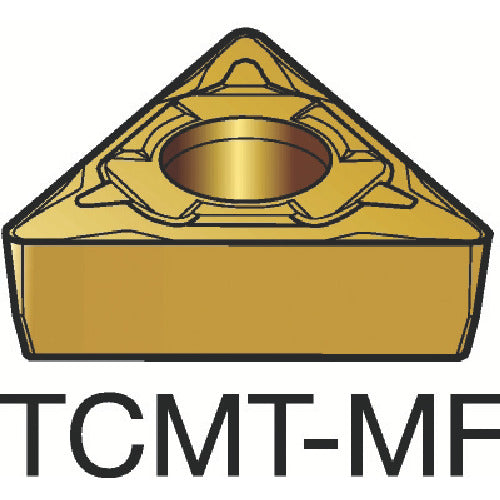

Sandvik Coromant 107 Turning Positive Insert (120) 1115 TCMT 09 02 02-MF 10 pieces

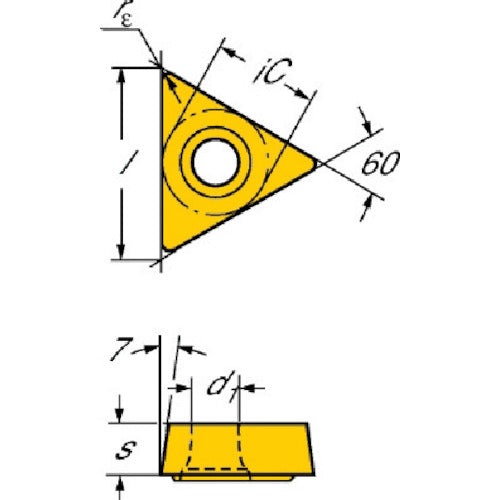

Catalog number: TCMT 09 02 02-MF Features: ●Sharp cutting edge and close contact with ultra-fine grain base material, high high temperature hardness and excellent resistance to plastic deformation are combined with excellent cutting edge reliability. ●Uniform flank wear and high machining performance are achieved. Applications: ●For general turning and stainless steel machining. ●For finishing stainless steel. Specifications: ● Suitable workpiece material: MS ● Insert shape: Triangle ● Effective cutting edge length LE (mm): 9.17 ● Inscribed circle IC (mm): 5.55625 ● Thickness S (mm): 2.38125 ● Corner radius RE (mm): 0.2 ● Hole diameter D1 (mm): 2.5 ● Main relief angle AN (°): 7 ● Coating: TiAlN + TiAlN ● Machining type: Finishing ● Corner radius (mm): 0.2 ● Breaker: MF ● Thickness (mm): 2.38125 ● Cutting edge length (mm): 9.17 ● Insert relief angle (°): 7 ● Machining type: Finishing cutting ● PVD thin film coating material type
