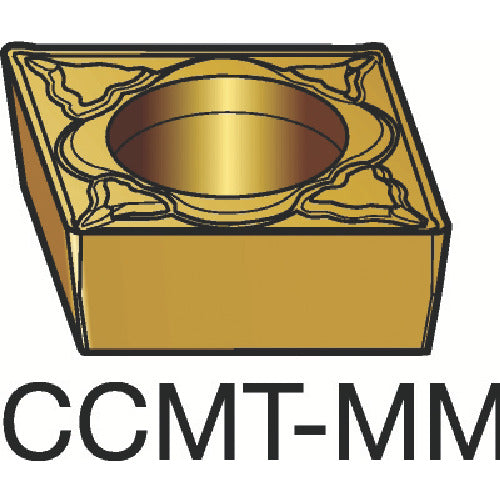

Sandvik Coromant 107 Turning Positive Insert (120) 1125 CCMT 12 04 08-MM 10 Pieces

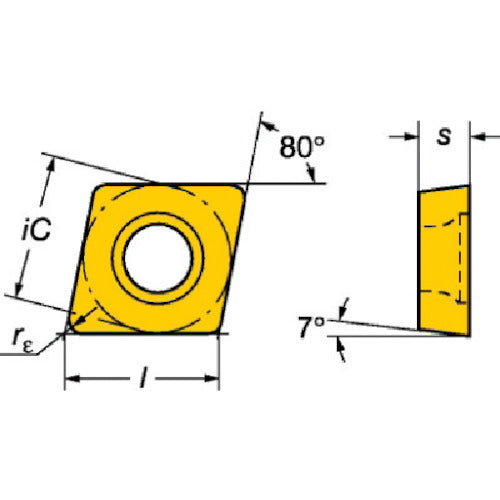

Catalog number: CCMT 12 04 08-MM Features: ●Excellent performance when smooth cutting and excellent cutting edge toughness or surface roughness are required. ●Excellent thermal shock resistance and ideal for light interrupted cutting. Applications: ●For general turning and stainless steel machining. ●For medium to low cutting speeds. Specifications: ● Suitable workpiece material: PMS ● Tip shape: Diamond 80° ● Effective cutting edge length LE (mm): 12.0959 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 5.5 ● Main relief angle AN (°): 7 ● Coating: TiAlN + TiAlN ● Machining type: Medium ● Breaker: MM ● Thickness (mm): 4.7625 ● Cutting edge length (mm): 12.0959 ● Tip relief angle (°): 7 ● Machining form: Medium cutting ● PVD coated ultra-fine grain carbide material
