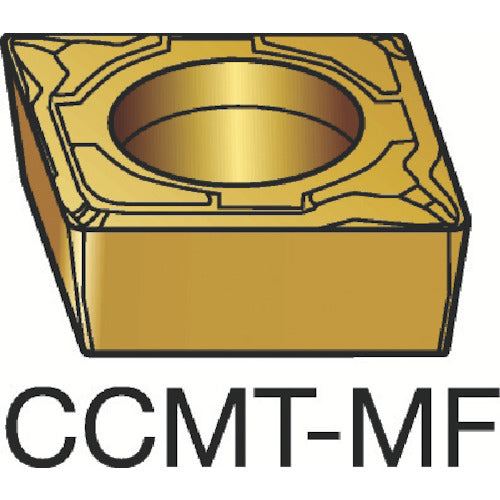

Sandvik Coromant 107 Turning Positive Insert (120) 2015 CCMT 12 04 04-MF 10 Pieces

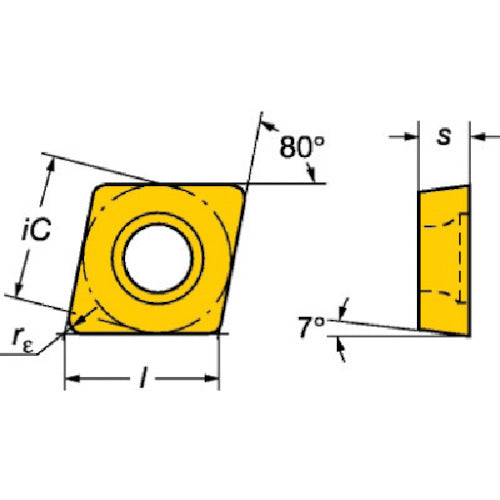

Catalog number: CCMT 12 04 04-MF Features: ● First recommended material for continuous cutting. Applications: ● For general turning and stainless steel processing. ● For medium to high cutting speeds. Specifications: ● Suitable workpiece: M ● Insert shape: Diamond 80° ● Effective cutting edge length LE (mm): 12.4959 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 5.5 ● Main relief angle AN (°): 7 ● Coating: TiCN + Al2O3 + TiN ● Processing type: Finishing ● Breaker: MF ● Thickness (mm): 4.7625 ● Blade length (mm): 12.4959 ● Insert relief angle (°): 7 ● Processing form: Finishing cutting ● CVD coated carbide material
