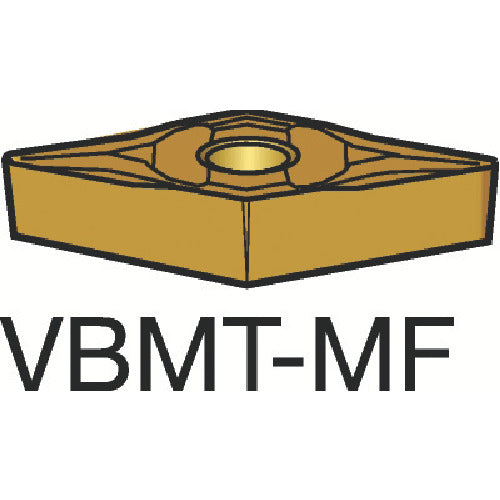

Sandvik Coromant 107 Turning Positive Insert (120) 2015 VBMT 11 03 04-MF 10 pieces

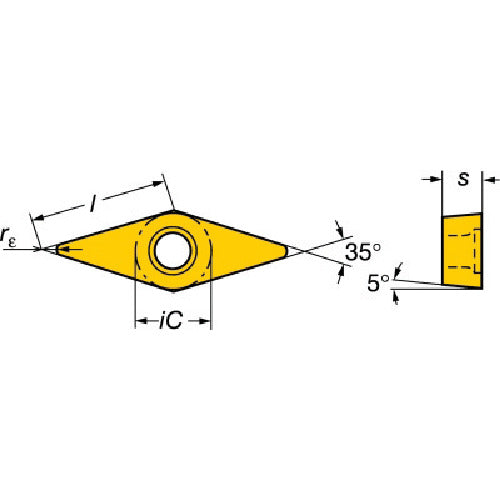

Catalog number: VBMT 11 03 04-MF Features: ● First recommended material for continuous cutting. ● For finishing and light rough cutting of stainless steel, for medium to high cutting speeds. Applications: ● For general turning stainless steel processing. Specifications: ● Suitable workpiece: M ● Insert shape: 35° rhombus ● Effective cutting edge length LE (mm): 10.6709 ● Inscribed circle IC (mm): 6.35 ● Thickness S (mm): 3.175 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 2.8 ● Main relief angle AN (°): 5 ● Coating: TiCN + Al2O3 + TiN ● Processing type: Finishing ● Corner radius (mm): 0.3969 ● Breaker: MF ● Thickness (mm): 3.175 ● Blade length (mm): 10.6709 ● Insert relief angle (°): 5 ● Processing type: Finishing cutting ● CVD coated carbide material
