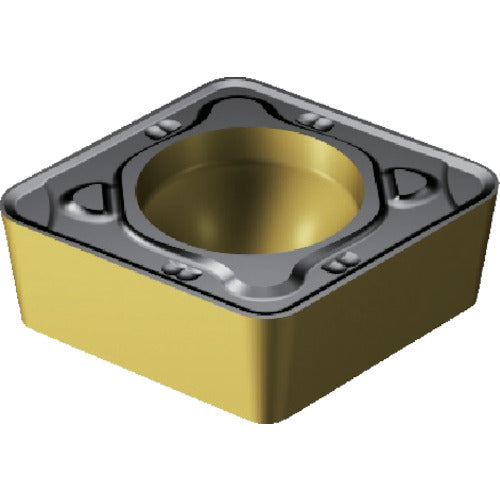

Sandvik Coromant 107 turning positive insert (120) 3225 CCMT 06 02 08-KR 10 pieces

Catalog number: CCMT 06 02 08-KR Features: ●CVD-coated carbide material with high cutting edge reliability. ●Suitable for light to heavy intermittent cutting. ●Used under moderate to severe machining conditions. Applications: ●For general turning cast iron machining. Specifications: ●Suitable workpiece: K ●Insert shape: Diamond 80° ●Effective cutting edge length LE (mm): 5.648 ●Inscribed circle IC (mm): 6.35 ●Thickness S (mm): 2.38125 ●Corner radius RE (mm): 0.7938 ●Hole diameter D1 (mm): 2.8 ●Main relief angle AN (°): 7 ●Coating: TiCN+Al2O3+TiN ●Machining type: Roughing ●Breaker: KR ●Thickness (mm): 2.38125 ●Cutting length (mm): 5.648 ●Insert relief angle (°): 7 ●Machining form: Rough cutting ●CVD-coated carbide material
