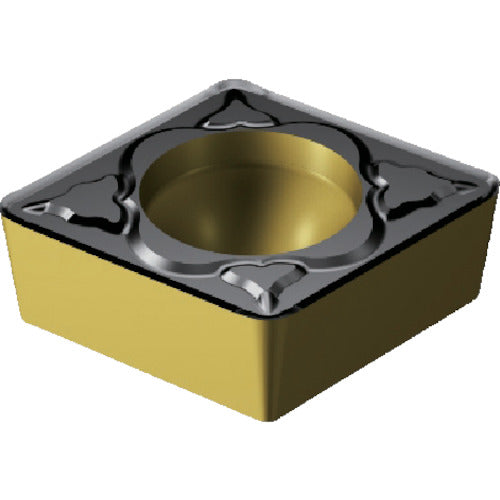

Sandvik Coromant 107 turning positive insert (120) 3225 CCMT 12 04 08-KM 10 pieces

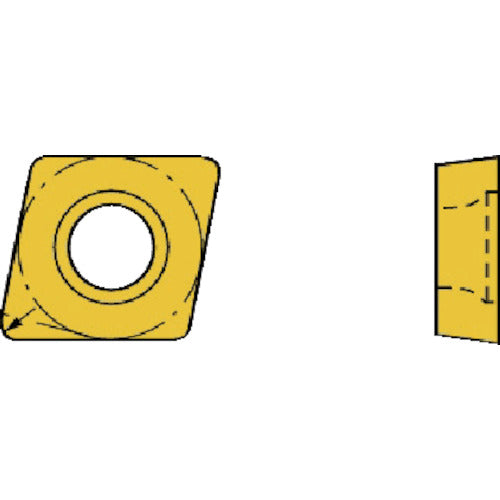

Catalog number: CCMT 12 04 08-KM Features: ●CVD coated carbide material with high cutting edge reliability. ●Suitable for light to heavy interrupted cutting. ●Used under medium to severe machining conditions. Applications: ●For general turning and cast iron machining. Specifications: ● Suitable workpiece material: K ● Tip shape: Diamond 80° ● Effective cutting edge length LE (mm): 12.0959 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 5.5 ● Main relief angle AN (°): 7 ● Coating: TiCN+Al2O3+TiN ● Machining type: Medium ● Breaker: KM ● Thickness (mm): 4.7625 ● Cutting edge length (mm): 12.0959 ● Tip relief angle (°): 7 ● Machining form: Medium cutting ● CVD coated carbide material
