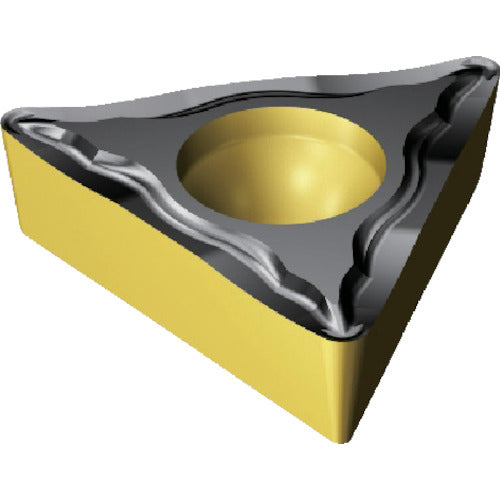

Sandvik Coromant 107 turning positive insert (122) 4335 TCMT 11 02 04-UM 10 pieces

Catalog number: TCMT 11 02 04-UM Features: ●Coated material for steel and cast steel in unstable cutting conditions. ●High cutting edge reliability and excellent chip removal rate in intermittent cutting. Applications: ●For general turning steel processing. Specifications: ●Suitable workpiece: P ●Insert shape: Triangle ●Effective cutting edge length LE (mm): 10.34 ●Inscribed circle IC (mm): 6.35 ●Thickness S (mm): 2.38125 ●Corner radius RE (mm): 0.3969 ●Hole diameter D1 (mm): 2.8 ●Main relief angle AN (°): 7 ●Coating: TiCN+Al2O3+TiN ●Processing type: Medium ●Breaker: UM ●Thickness (mm): 2.38125 ●Cutting edge length (mm): 10.34 ●Insert relief angle (°): 7 ●Processing form: Medium cutting ●CVD coated material
