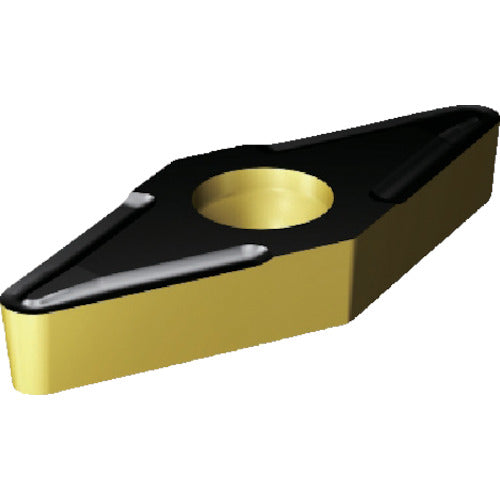

Sandvik Coromant 107 turning positive insert (122) 4335 VBMT 11 02 02-UF 10 pieces

Catalog number: VBMT 11 02 02-UF Features: ●Coated grade for steel and cast steel in unstable cutting conditions. ●High cutting edge reliability and excellent chip removal rate in interrupted cutting. Applications: ●For general turning steel machining. Specifications: ● Suitable workpiece material: P ● Tip shape: 35° rhombus ● Effective cutting edge length LE (mm): 10.8709 ● Inscribed circle IC (mm): 6.35 ● Thickness S (mm): 2.38125 ● Corner radius RE (mm): 0.2 ● Hole diameter D1 (mm): 2.8 ● Main relief angle AN (°): 5 ● Coating: TiCN+Al2O3+TiN ● Machining type: Finishing ● Corner radius (mm): 0.2 ● Breaker: UF ● Thickness (mm): 2.38125 ● Cutting edge length (mm): 10.8709 ● Tip relief angle (°): 5 ● Machining type: Finishing cutting ● CVD coating material type
