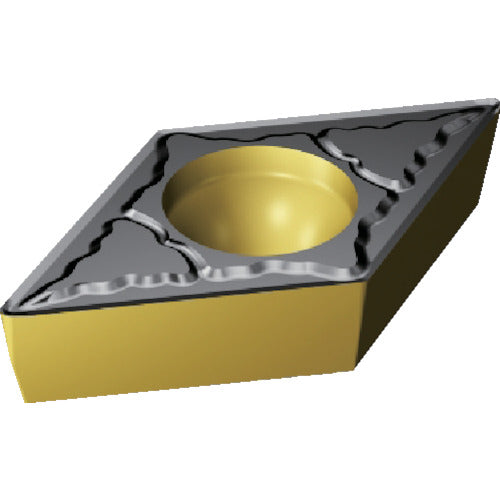

Sandvik Coromant 107 turning positive insert (122) 4415 DCMT 07 02 08-PM 10 pieces

Catalog number: DCMT 07 02 08-PM Features: ●The most suitable material for machining that requires heat resistance. Applications: ●For turning steel. ●For rough to finishing. Specifications: ●Suitable workpiece: PK ●Insert shape: Diamond 55° ●Effective cutting edge length LE (mm): 6.9519 ●Inscribed circle IC (mm): 6.35 ●Thickness S (mm): 2.38125 ●Corner radius RE (mm): 0.7938 ●Hole diameter D1 (mm): 2.8 ●Main relief angle AN (°): 7 ●Coating: TiCN+Al2O3+TiN ●Machining type: Medium ●Breaker: PM ●Thickness (mm): 2.38125 ●Blade length (mm): 6.9519 ●Insert relief angle (°): 7 ●Machining type: Medium cutting ●CVD coating material
