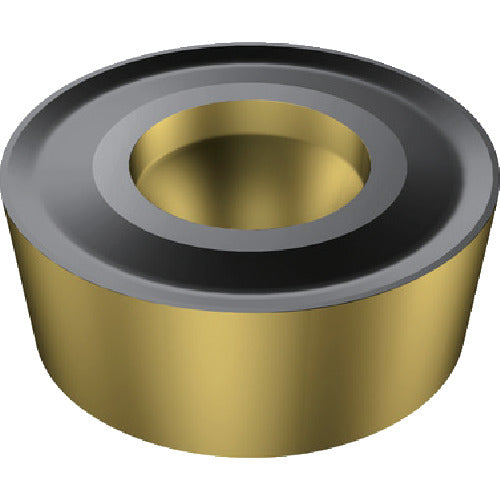

Sandvik Coromant 107 turning positive insert (122) 4415 RCMT 10 T3 M0 10 pieces

Catalog number: RCMT 10 T3 M0 Features: ●This material is ideal for machining that requires heat resistance. ●The new base material combines resistance to plastic deformation with good toughness, resulting in improved reliability. Stability is improved by increasing the cobalt content toward the surface. Applications: ●For turning steel machining. ●For rough to finishing machining. ●For continuous to lightly interrupted machining. Specifications: ●Suitable workpiece material: PK ●Insert shape: Round ●Inscribed circle IC (mm): 10 ●Thickness S (mm): 3.96875 ●Corner radius RE (mm): 5 ●Hole diameter D1 (mm): 4.4 ●Main relief angle AN (°): 7 ●Coating: TiCN+Al2O3+TiN ●Machining type: Medium ●Corner radius (mm): 5 ●Breaker: M0 ●Thickness (mm): 3.96875 ●Insert relief angle (°): 7 ●Machining form: Medium cutting ●CVD coating material
