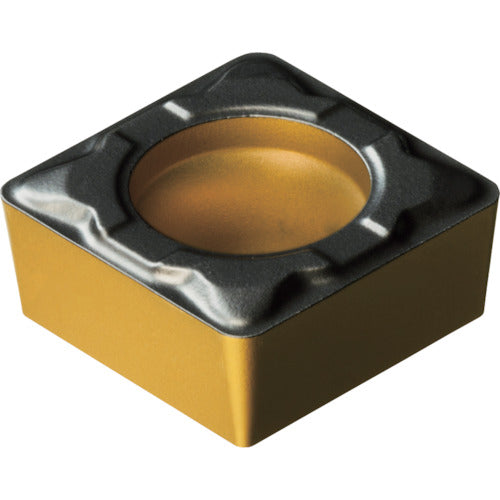

Sandvik Coromant 107 turning positive insert (122) 4415 SCMT 09 T3 04-PF 10 pieces

Catalog number: SCMT 09 T3 04-PF Features: ●This material is ideal for machining that requires heat resistance. ●The new base material combines resistance to plastic deformation with good toughness, resulting in improved reliability. Stability is improved by increasing the cobalt content toward the surface. Applications: ●For turning steel machining. Specifications: ●Suitable workpiece material: PK ●Insert shape: Square ●Effective cutting edge length LE (mm): 9.125 ●Inscribed circle IC (mm): 9.525 ●Thickness S (mm): 3.96875 ●Corner radius RE (mm): 0.3969 ●Hole diameter D1 (mm): 4.4 ●Main relief angle AN (°): 7 ●Coating: TiCN+Al2O3+TiN ●Machining type: Finishing ●Breaker: PF ●Thickness (mm): 3.96875 ●Blade length (mm): 9.125 ●Insert relief angle (°): 7 ●Machining form: Finishing cutting ●CVD coating material
